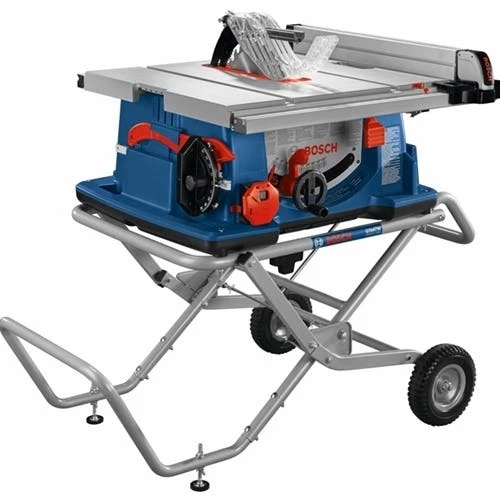

Bosch Power Tools Bosch 10″ Table Saw Gravity-Rise Wheeled Stand Jobsite 4100XC-10

Bosch

10 Worksite Table Saw with Gravity-Rise Wheeled Stand 4100-10

The powerful 15-Amp saw delivers 4.0 max HP for outstanding productivity. It also incorporates soft-start circuitry for smooth but quick ramp-up to the operating speed to manage the intensity of motor start-up and minimize the possibility of tripping a circuit breaker.

FEATURES:

• Powerful 10 In. Worksite table saw features 15-Amp saw delivers 4.0 max HP and 3;650 rpm; for the power required for ripping rip-cutting and cross-cutting in of fine- and rough-carpentry materials
• Large cast aluminum top provides increased work space and material support with a 25 In. ripping capacity to cover all typical jobsite rip-cutting widths
• Soft-start circuitry manages the intensity of motor start-up and minimizes the possibility of tripping a circuit breaker
• Constant Response circuitry helps maintain speed under load

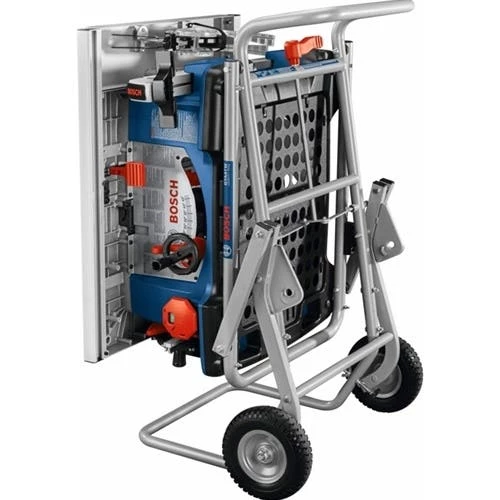

• Portability works seamlessly with the included lighter GTA47W Gravity-Rise Wheeled Stand for easy jobsite mobility; with single-action setup and take down

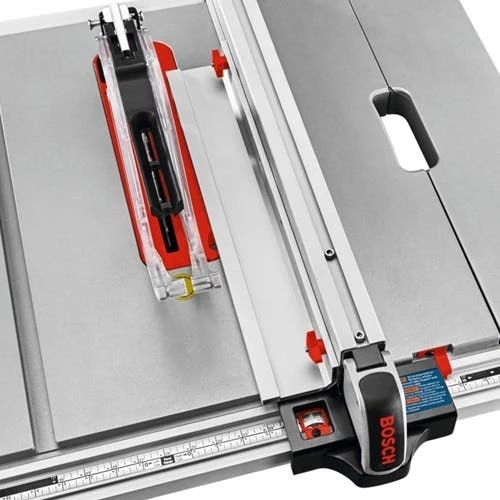

• SquareLock rip fence engineered for enhanced clamping and trueness

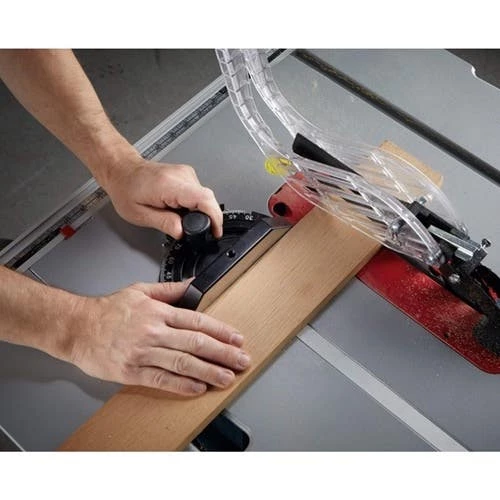

• Smart Guard System riving knife and anti-kickback pawls provide protection; while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut
• Onboard storage allows for access to all included components
• Arbor lock permits easy blade changes; with arbor lock and blade wrench located onboard

INCLUDES:

Attributes
Amperage	15.0
Arbor	5/8″
Arbor Size	5/8″
Bevel Angle Range	-2 to 47
Blade Diameter	10.0
Dimensions	Table saw & stand combination in working position = 30.25″ Depth (front to back) x 47″ Width (when extension is at in-most position) x 35.5″ Height. Table-top dimensions = 21-1/2″ Depth (front to back) x 29″ Width (when extension is at in-most position)
Dust Blower	No
Height	13.25″
Length	29.0″
Max. Bevel Capacity ()	47.0
Max. Depth of Cut at 45 Deg.	2-1/2″
Max. Depth of Cut at 90 Deg.	3-1/8″
No Load RPM	3;650
Voltage	120V
Weight	58.0lb
Weight of Bare Saw – Lb.	58.0
Weight of Saw and Standard Equipment (Without Stand) – Lb.	.0
Weight of Saw; Standard Equipment and Stand – Lb.	92.0
Width	32.0″
Working Length Table Top dimensions	29″ x 21-1/2″
Works With	Vacuum Hoses Common 2-1/2″ Vacuum Hoses
	Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses VAC004	Dust Bag TS1004	Zero-Clearance Insert TS1005	Dado Insert TS1007	Molding Insert TS1009	Outfeed Support TS1016	Left-Side Support TS1008
	Includes	(1) GTA47W Gravity-Rise Wheeled Table Saw Stand; (1) Smart Guard System – Barrier-Guard Device and Anti-Kickback Pawls; (1) 10 In. Carbide-Tipped Blade; (1) SquareLock Rip Fence; (1) Miter Gauge; (1) Push Stick; (1) Throat Plate Insert; (1) Multi-Function Blade Wrench; (1) Adjustment Wrench

“
