Hougen Tools Hougen 18V Makita Cordless Metal Hole Punch (1/4 Max Thick) 76000PR

Hougen

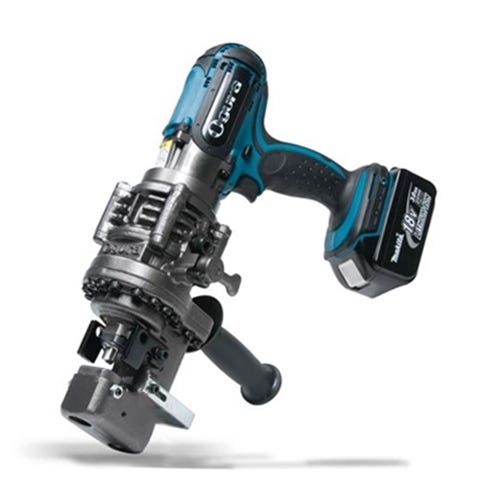

Hougen 18V Makita Cordless Metal Hole Punch 76000PR

Quickly punch holes from almostanywhere with the cordless 76000PR electro-hydraulic hole puncher. No cords or hoses to contend with. All selfcontained for quick; accurate holes in as little as 4.5 seconds. The 76000PR uses a quick charging 18V battery. The handle rotates 360 degrees for getting into a variety of locations and the punch weighs only 17.4 lbs (7.9 kg). The cordless puncher also includes the power retract system which if the punch ever resists exiting the material; it can be power reversed out of the hole.

FEATURES:

• Designed for applications typically done with hand held twist drills.
• Uses the Makita 18V battery platform.
• At just 16.5 pounds with battery; this is the lightest punch around.
• Punch round & oblong in materials up to 1/4 thick.
• Its 1.02″ throat depth provides excellent reach and versatility.
• Power retractable punch

SPECIFICATIONS:

Pressure (Tons)	11
Approx. Punching Speed	4.5 secs
Max Hole Size – Round	19/32″ – (15mm)
Max Hole Thickness – Round	1/4″ – (6.35mm)
Max Hole Size – Oblong	7/16″ x 5/8″ (11mm x 15.9mm)
Max Hole Thickness – Oblong	1/4″ – (6.35mm)
Max Throat Depth	.98″ – (25mm)
Weight	17.42 lbs – (7.9 kg)
Shipping Weight	34.8 lbs – (15.8 kg)

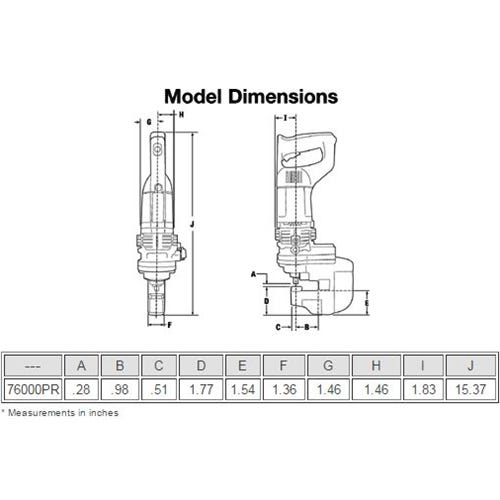

Dimensions: 15.37″ L x 4.53″ W x 11.52″ H390.5mm H x 115mm W x 292.5mm H Includes: carrying case; 15/32″ (12mm) punch & die; charger.Optional Stand: 76641Extra battery: 76094

ROUND PUNCHES:

bgcolor=”#ffffff”>

ROUND PUNCH				MATERIAL		DIE
Size			Part No.	Thickness	Style	Size	Part No.
Normal	Actual	Metric
5/32″	.157	4mm	76558	5/64 (.078) 14 GA.	F;A	Die 5/32 SA	76571
3/16″	.197	5mm	76559	5/64 (.078) to .118 14 to 12 GA.	F;A	Die 3/16 SA	76572
7/32″	.217	5.5mm	76560	5/64 (.078) to .118 14 to 12 GA.	F;A	Die 7/32 SA	76573
15/64″	.236	6mm	76561	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 15/64 SA	76574
				5/64 (.125) to 5/32 (.157) 10 to 3 GA	F;A	Die 15/64 SB	76575
1/4″	.256	6.5mm	76562	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 1/4 SA	76576
				>5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 1/4 SA	76577
5/16″	.315	8mm	765	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 15/64 SA	76578
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 15/64 SB	76579
11/32″	.335	8.5mm	76564	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 11/32 SA	76580
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 11/32 SB	76581
3/8″	.394	10mm	76565	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 3/8 SA	76582
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 3/8 SB	76583
7/16″	.433	11mm	76566	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	7/16 SA	76584
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	7/16 SB	76585
15/32″	.472	12mm	76567	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 15/32 SA	76586
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 15/32 SB	76587
1/2″	.512	13mm	76568	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 1/2 SA	76588
				>5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 1/2 SB	76589
9/16″	.551	14mm	76569	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 9/16 SA	76590
				5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 9/16 SB	76591
19/32″	.591	15mm	76570	5/64 (.078) to 1/8 (.125) 14 to 11 GA	F;A	Die 19/32 BA	76592
				5/64 (.125) to 1/4 (.250) 10 to 3 GA	F;A	Die 19/16 SB	76593

“
