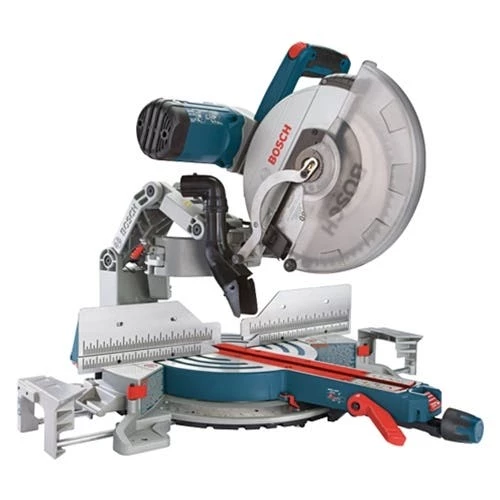

Bosch Power Tools Bosch 12″ Dual-Bevel Glide Miter Saw GCM12SD

Bosch

12 Dual-Bevel Glide Miter Saw GCM12SD

FEATURES:

• A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
• The saw also offers a large cutting capacity; easy-to-read bevel and miter scales with detents at common angles; and easy-access upfront controls
• Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right
• Large easy-to-read uniform bevel and stainless steel miter scales: 52 left/60 right miter capacity; 47 left/47 right bevel capacity with marked detents and roof pitch angles
• Adjustable miter detents: detents at 0; 15; 31.6; 22.5; 45; 60 right super-accurate and durable design
• Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Bevel detents: 0; 33.9; 45 left/right for accurate cuts
• Category best 90% dust collection – optimized for cutting 2x material with a vacuum
• Ergonomic ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use

SPECIFICATIONS:

Attributes
Amperage	15.0
Bevel Angle Range	47 left and 47 right
Bevel Stops	0; 33.9; 45 and 47 (L/R)
Blade Diameter	12.0
Blade Size	12″
Case Type	–
Category	Compound Miter Saws
Dust Collection	Yes
Electric Motor Brake	Yes
Height	27.0″
Height of Table from Base Feet to Table Surface – In.	3.75
Length	32.375″
Max. Base Molding Against Fence	3-7/8 In. (6-3/4 In. from 0 to 47 L)
Max. Crown Molding (38 Spring) Angled Against Fence	5-1/4 In. (5-1/2 In. from 0 to 47 L)
Max. Crown Molding (45 Spring) Angled Against Fence	6 In.
Max. Cut Capacity – 0 Miter 0 Bevel	3-1/2 In. x 13-1/2 In. (4×14 Dimensional Lumber)
Max. Cut Capacity – 0 Miter 45 Left Bevel	2 In. x 13-1/2 In. (2×14 Dimensional Lumber)
Max. Cut Capacity – 0 Miter 45 Right Bevel	1-1/2 In. x 13-1/2 In. (2×14 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 0 Bevel	3-1/2 In. x 9-1/2 In. (4×10 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 45 Left Bevel	2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 45 Right Bevel	1-1/2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Miter Angle Range	52 Left; 60 Right
Miter Detents	0; 15; 22.5; 31.6; 45; (Left/Right) 60; (Right)
Miter Positive Stops	0; 15; 22.5; 31.6; 45 (Left/Right); 60 (Right)
No Load RPM	3;800
Separate On/Off Speed Control	Blank
Voltage	120V
Weight	65.0lb
Width	26.5″

WORKS WITH:

Works With	Miter Saw StandsT1B; T4B; GTA3800
	Crown Molding Stops (Pair)MS1233	Length StopMS1234	Vacuum HosesVH1022; VH1035; VH15 (by means of VX120 adapter included with those hoses); VH1622A and VH15A (by means of anti-static adapter included with those hoses); VAC005; VAC006; VAC008; and most other 35 mm and 22 mm hoses	Adapters for 1-1/4 in and 1-1/2 in. Vacuum HosesVAC002 or VAC024	Adapter for 2-1/2 in. Vacuum HosesVAC020	Arbor Washer Laser GuideLS010

“
