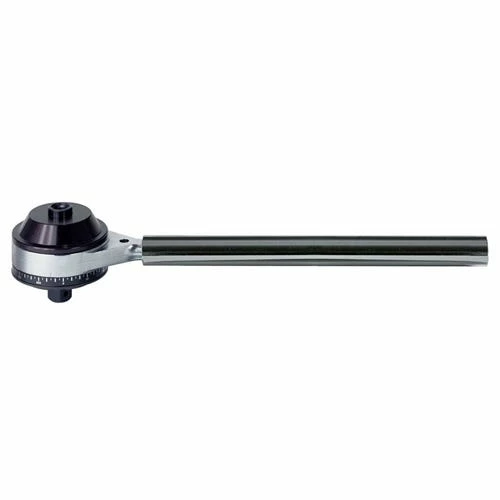

Gearwrench Tools Gearwrench 1;200 Foot/Pound Torque Multiplier 64-832G

Gearwrench

1;200 Foot/Pound Torque Multiplier 64-832G

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer; tire shop; beam and electronic torque wrenches; as well as; torque multipliers. The line of torque products allow the user to complete any job where accurate torque is required.

FEATURES:

• Low input torque is required and can easily be applied by one person.
• Internal planetary gear system provides strength and durability.
• Place an impact socket on the output square to attach to the fastener; then restrain the reaction bar against the equipment being serviced.
• Input and output rotate in a matching direction; while the reaction arm moves in the opposite direction from the input/output force.
• Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability.
• Square drive shears at 3% to 10% of overload torque to help protect against internal damage and permits easy replacement of the square drive.
• Built-in anti-backlash maintains the multipliers input torque; allowing the use of a ratcheting head torque wrench for more efficiency.
• Built-in angle of turn protractor displays the output angle; providing effective use on fasteners requiring a specific angle rotation after applied torque.
• Made in the USA.
• 1 year limited warranty; calibration accuracy warrantied for 90 days.

SPECIFICATIONS:

Overall Length	14.125
Made in USA	Yes
Drive Type	Square
Knurled	No
Finish	Elctroless Nickle
Torque Accuracy (20-100% of Full Range)	+/-5% Clockwise
Material	Steel
Warranty	90 Day Calibration / 1 Year Parts

“
