Sale!

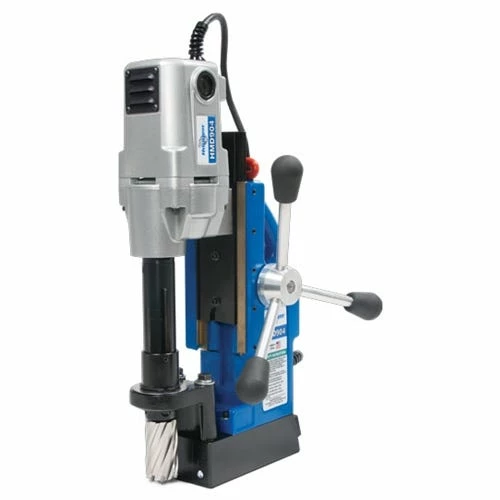

Hougen Tools Hougen HMD904S Portable Magnetic Drill 1-1/2″ Swivel Base 0904103

Original price was: $362.00.Current price is: $97.99.

SKU: HOU0904103 Categories: Hougen Mag Drill Presses, Hougen Tools Tag: Hougen Tools

Buy Quality, Live Better
Sustainable materials, for a better tomorrow.
Fast and Secure Payments
Reliable Payments for Reliable Shopping

Hougen

HMD904S Portable Magnetic Drill 1-1/2″ Swivel Base 0904103

FEATURES:

Hougen Part# 0904103
The mag drill of choice for fabrication. Lightweight; compact; powerful;& versatile.
Now better than ever… completely Redesigned with More Features.
Large 1-1/2″ x 2″ capacity
Can work with twist drill bits – Requires Slot Adapter 08186 & 1/2″ Chuck 10731
NEW – Pilot light – for low light or no light conditions
NEW -Two stage magnet – 30% power increase when motor is turned on
NEW – Slot Drive arbor for more accuracy and quicker change out of accessories
NEW – Housing – stronger stiffer; more ergonomic
Positive slug ejection
Many accessories are available for a portable machine shop including: drill chucks; tapping; countersink; and more…
Feed handles quickly change from side to side
Lift detector safety system
Rear mounted controls
Carrying case included
One year warranty
Swivel Base adds even greater versatility

Swivel Base adds even greater versatility:

Precisely line up your pilot with the holes center location
One stroke lock and unlock handle
Great for horizontal; overhead; tight areas; and getting out over another piece of steel
Patented

Specifications:

Electrical System	115V; 50/60 Hz – 9A; 1035W
Electrical System	230V; 50/60 Hz – 4.5A; 1035W
Motor	8A (115V); 4 (230V); 450 RPM
Diameter	7/16″- 1-1/2″ (12mm – 38mm)
Depth	2″ (50mm)
Cutter/Mount	in12;000-Seriesin & Copperhead & Fusion cutters; 3/4″ shank
Dimensions	19-5/8″ H x 7-3/4″ W x 11-5/8″ L
Dimensions	(499mm H x 197mm W x 295mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L
Swivel Area	(28.5mm H x 34.9mm W)
Magnet	Base	3-1/8″ W x 6-9/16″ L (79mm W x 167mm L)
	1″ Plate (25mm)	Dead Lift 1750 lb. (794 kg)	Drillpoint Breakaway 995 lb. (452 kg)
	3/8″ Plate (9.5mm)	1310 lb. (594 kg)	710 lb. (322 kg)
Magnet (Swivel)	1″ Plate (25mm)	Dead Lift 1340 lb. (608 kg)	Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg)
Magnet (Swivel)	3/8″ Plate (9.5mm)	1015 lb. (460 kg)	For. 503 lb. (228 kg) Back 605 (274 kg)
Weight	28.9 lb. (13.1 kg) Shipping 43 lb (19.5 kg)
Weight (Swivel)	31.9 lb. (14.5 kg) Shipping 45 lb (20.4 kg)
Shipping Dimensions	18 x 20 x 9″ (45.72 x 50.8 x 22.9 cm)
