Hougen Tools Hougen HMD905 Portable Magnetic Drill 1-5/8″ Two Speed 0905102

Original price was: $312.00.Current price is: $97.99.

SKU: HOU0905102 Categories: Hougen Mag Drill Presses, Hougen Tools Tag: Hougen Tools

Buy Quality, Live Better
Sustainable materials, for a better tomorrow.
Fast and Secure Payments
Reliable Payments for Reliable Shopping

Hougen

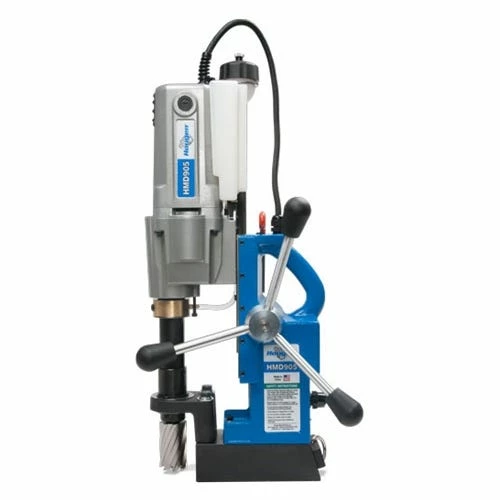

Portable Magnetic Drill 1-5/8 Two Speed 0905102

FEATURES:

Larger Motor with two speeds adds increased strength and versatility

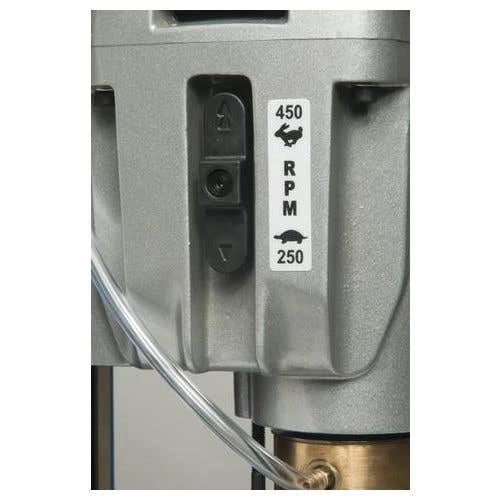

Two speed gear box – 250 and 450 RPM
Can work with twist drill bits – Requires Slot Adapter 08186 & 1/2″ Chuck 10731

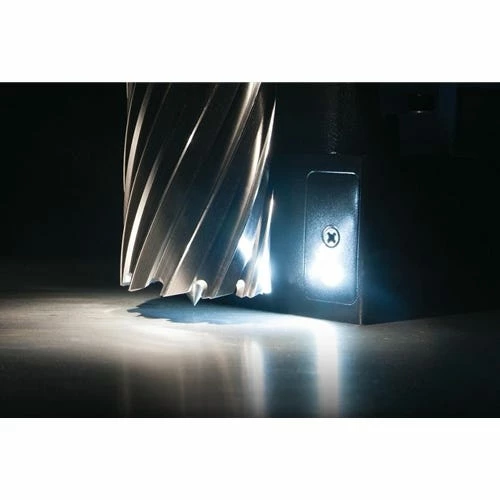

Pilot light for low light conditions and greater hole accuracy

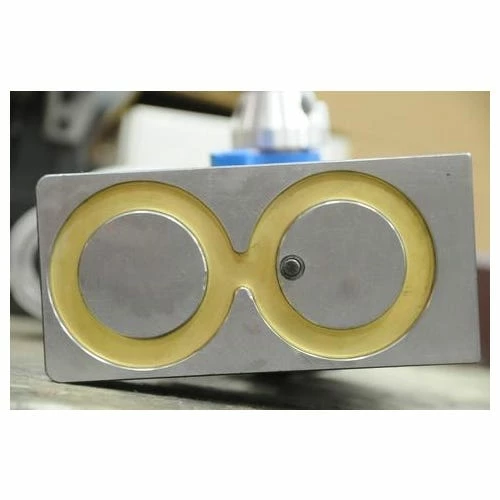

Two stage magnet: engages full power when motor is turned on
Available with or without the swivel base
Positive slug ejection
Many accessories are available to turn your drill into a portable machine shop; including drill chucks; tapping; countersink; and more
Lift detector safety system
Integrated gravity fed coolant bottle
Carrying case included
One Year warranty
9A; 115V; 250/450 RPM Motor
7/16″ – 1-5/8″ hole diameter; 2″ depth of cut
3/4″ cutter mount
1/2″ twist drill capacity with drill chuck
1/2″ tapping capacity with tapping unit
22-13/16″ H x 7-11/16″ W x 11-3/4″ L
3-1/8″ W x 7-11/16″ L base
1750 lbs. dead lift on 1″ Plate; 1310 lbs. on 3/8″ plate
35 lbs.
Large 2″ x 2″ capacity
Powerful high torque Hougen motor and gears
Two Speed gear box – 250 & 450 RPM
Pilot light
Two stage magnet – 30% increase in power when motor is turned on
Positive slug ejection
Integrated coolant bottle
Many accessories are available for a portable machine shop including: drill chucks; tapping; countersink; and more…
Feed handles quickly change from side to side
Lift detector safety system
Rear mounted controls
Carrying case included
Two year warranty

SPECIFICATIONS:

rowspan=”3″>

Electrical System	115V; 50/60 Hz – 10A; 1150W
Electrical System	230V; 50/60 Hz – 5A; 1150W
Motor	9A (115V); 4.5A (230V); 250/450 RPM
Diameter	7/16″- 2″ (12mm – 50mm)
Depth	2″ (50mm)
Cutter/Mount	in12;000-Seriesin & Copperhead & Fusion cutters; 3/4″ shank
Dimensions	22-13/16″ H x 7-11/16″ W x 11-3/4″ L
Dimensions	(579mm H x 195mm W x 299mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L
Swivel Area	(28.5mm H x 34.9mm W)
Magnet	Base	3-1/8″ W x 6-9/16″ L (79mm W x 167mm L)
	1″ Plate (25mm)	Dead Lift 1750 lb. (794 kg)	Drillpoint Breakaway 995 lb. (452 kg)
	3/8″ Plate (9.5mm)	1310 lb. (594 kg)	710 lb. (322 kg)
Magnet (Swivel)	1″ Plate (25mm)	Dead Lift 1340 lb. (608 kg)	Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg)
Magnet (Swivel)	3/8″ Plate (9.5mm)	1015 lb. (460 kg)	For. 503 lb. (228 kg) Back 605 (274 kg)
Weight	35 lb. (15.9 kg) Shipping 52 lb (23.6 kg)
Weight (Swivel)	38 lb. (17.2 kg) Shipping 55 lb (24.9 kg)
Shipping Dimensions	20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm)
