Hougen Tools Hougen HMD920S Portable Magnetic Drill 3″ Depth 3-Speed W/ Swivel Base 0920104

Original price was: $324.00.Current price is: $96.99.

SKU: HOU0920104 Categories: Hougen Mag Drill Presses, Hougen Tools Tag: Hougen Tools

Buy Quality, Live Better
Sustainable materials, for a better tomorrow.
Fast and Secure Payments
Reliable Payments for Reliable Shopping

Hougen

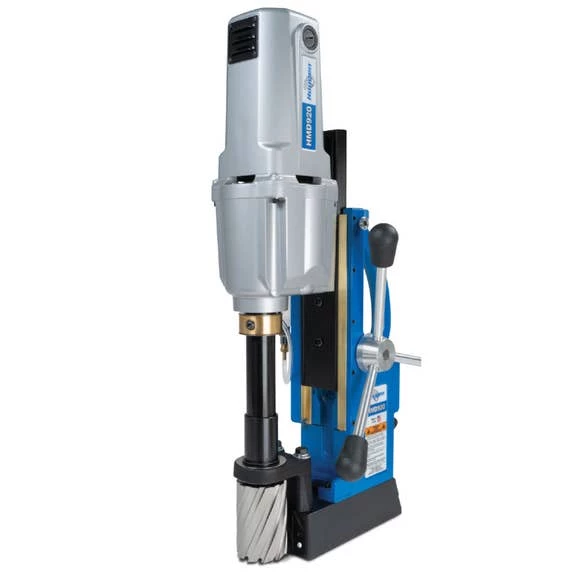

HMD920 Portable Magnetic Drill 3″ Depth 115V 3-Speed w/ Swivel Base 0920104

Tackle the toughest holemaking challenges in the roughest of conditions, with the NEW HMD920 portable magnetic drill.
Powerful industrial strength motor for all day every day drilling, plus a three speed gear box to maximize torque, tool
life and productivity.

FEATURES:

Powerful high torque Hougen motor and gears.
Three speed gear box – 250 / 450 / 700 RPM.
Pilot light for low light conditions and greater hole accuracy.
Two stage magnet. Engages full power only when motor is turned on which increases magnet life.
Available with or without the swivel base.
Positive slug ejection.
Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more…
Feed handles quickly change from side to side.
Lift detector safety system.
Gravity fed coolant bottle.
Three speeds allows for the use of both “12,000-Series” and Copperhead Carbide cutters. The correct RPM provides the best tool life, (250 / 450 RPM for HSS Cutters) (700 RPM for Carbide Cutters*).
Two year warranty.

SPECIFICATIONS:

Electrical System	115V, 50/60 Hz – 13.5A, 1553W 230V, 50/60 Hz – 6.75A, 1553W
Motor	12.5A, 1438W (115V), 6.25A, 1438W (230V) 250/450/700 RPM
Diameter	7/16″ – 2-3/8″ (12mm – 60mm)
Depth	3″ (76mm)
Cutter/Mount	“12,000-Series” & Copperhead cutters, 3/4″ (19mm) shank
Twist Drill Capacity	3/4″ w/ drill chuck
Tapping Capacity	3/4″-16 UNF w/ tapping unit
Dimensions	25-15/16″ H x 8-3/16″ W x 12-13/16″ L (659mm H x 208mm W x 325mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L (28.5mm W x 34.9mm L)
Magnet Base	3-1/2″ W x 7-3/4″ L (89mm W x 197mm L)
Magnet 1″ Plate (25mm)	Dead Lift 2385 lb. (1082 kg) / Drillpoint Breakaway 1290 lb. (585 kg)
Magnet 3/8″ Plate (9.5mm)	1635 lb. (742 kg) / 825 lb. (374 kg)
Swivel Magnet 1″ Plate (25mm)	Dead Lift 2480 lb. (1125 kg) / Drillpoint Breakaway: For. – 1043 lb. (473 kg) / Back – 1218 lb. (552 kg)
Swivel Magnet 3/8″ Plate (9.5mm)	1782 lb. (808 kg) / For. – 796 lb. (361 kg) / Back – 1067 lb. (484 kg)
Weight	49 lb. (22.2 kg)
Weight (Swivel)	53 lb. (24.1 kg)

INCLUDES:

HMD920 Portable Magnetic Drill
Coolant Bottle
Swivel
