Hougen Metal Hole Punch Pro (1/2 Max Thick) 75006PR

Our heaviest duty model; the 75006PR develops 26.9 tons of pressure and will produce up to 15/16″ round holes and can punch through material up to 1/2″ thick material in approximately 4 seconds.

FEATURES:

• Has eyebolts on both sides for easy attachment of a lift assist or a counter-balancer for improved ergonomics.
• Single body design makes it easy to use anywhere.
• Easily confirm the hole position with the jog down feature.
• Punch automatically returns to the start”g position after the punch”g cycle is complete.

*If the punch ever resists returning to the home position; squeeze the trigger for the power feed return.*

SPECIFICATIONS:

Pressure (Tons)	26.9
Approx. Punching Speed	4 secs
Max Hole Size – Round	15/16″ – (23.8mm)
Max Hole Thickness – Round	1/2 ” – (12.7mm)
Max Hole Size – Oblong	11/16″ x 13/16″ (18mm x 21mm)
Max Hole Thickness – Oblong	1/2″ – (12.7mm)
Max Throat Depth	1-31/32″ – (50mm)
Weight (less work stand)	62.9 lbs – (28.5 kg)
Shipping Weight	82.6 lbs – (37.5 kg)

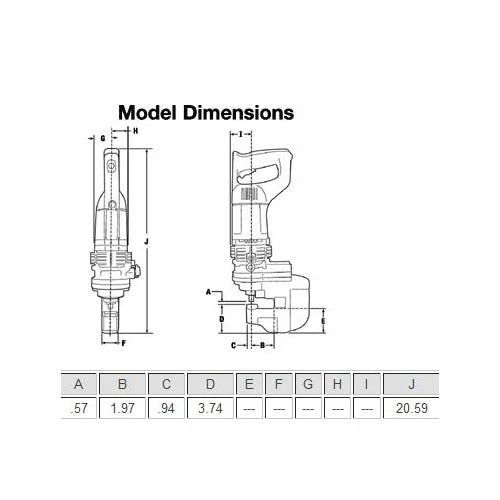

Dimensions	20.59″ L x 6.3″ W x 18.23″ D

ROUND PUNCH				MATERIAL		DIE
Size			Part No.	Thickness	Style	Size	Part No.
Nomal	Actual	Metric
7/16″	.433	11mm	759	14 to 11 GA	F;A;H	Die 7/16 SA	75578
				14 to 3 GA	F;A;H	Die 7/16 SB	75579
				5/16	C	Die 7/16 CC	75616
1/2″	.512	13mm	760	14 to 11 GA	F;A;H	Die 1/2 SA	75581
				14 to 3 GA	F;A;H	Die 1/2 SB	75582
				5/16	C	Die 1/2 CC	75617
9/16″	.551	14mm	761	14 to 11 GA	F;A;H	Die 9/16 SA	75584
				14 to 3 GA	F;A;H	Die 9/16 SB	75585
				5/16	F;A;H	Die 9/16 SB	75618
5/8″	.625	15.9mm	762	14 to 11 GA	F;A;H	Die 5/8 SA	75588
				14 to 3 GA	F;A;H	Die 5/8 SB	75589
				5/16	C	Die 5/8 CC	75620
11/16″	.688	17.5mm	7	14 to 11 GA	F;A;H	Die 3/8 SA	75592
				14 to 3 GA	F;A;H	Die 11/16 SB	75593
				5/16	C	Die 11/16 CC	75622
3/4″	.750	19mm	764	14 to 11 GA	F;A;H	Die 3/4 SA	75596
				14 to 3 GA	F;A;H	Die 3/4 SB	75597
				5/16″	C	Die 3/4 CC	75624
25/32″	.787	20mm	75365	14 to 11 GA	F;A;H	Die 25/32 SA	75600
				14 to 3 GA	F;A;H	Die 25/32″ SB	75601
				5/16	C	Die 25/32″ CC	75626
13/16″	.812	20.6mm	766	14 to 11 GA	F;A;H	Die 13/16 SA	75604
				14 to 3 GA	F;A;H	Die 13/16 SB	75605
				5/16″	C	Die 13/16 C	75628
7/8″	.875	22.2mm	767	14 to 11 GA	F;A;H	Die 7/8 SA	75608
				14 to 3 GA	F;A;H	Die 7/8 SB	75609
				5/16″	C	Die 7/8 CC	750
15/16″	.938	23.8mm	768	14 to 11 GA	F;A;H	Die 15/16 SA	75612
				14 to 3 GA	F;A;H	Die 15/16 SB	75613

“
