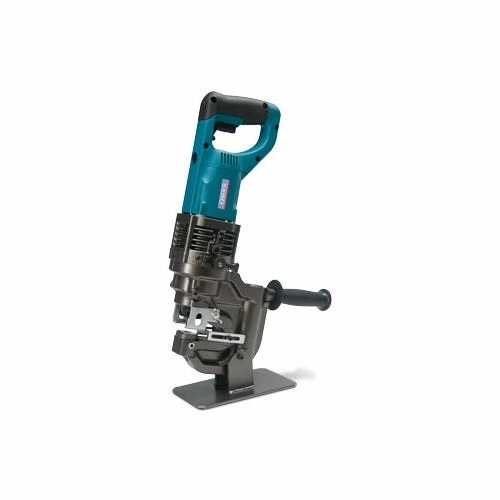

Hougen Tools Hougen Metal Hole Punch Pro (1/4″ Max Thick) 75002.5PR

Hougen

Metal Hole Punch Pro (1/4 Max Thick) 75002.5PR

• Metal Punch Pro 75002.5PR
• New model version of the Hougen 75002.5PR with the added benefit of a power retract
• Designed for applications typically done with hand held twist drills.
• At just 28.6 pounds; our lightest weight model is easily handled ” all types of punch”g applications.
• Punch round; and oblong holes ” materials from 5/64″ up to 1/4″ thick.
• Its 2-3/8″ throat depth provides excellent reach and versatility.
• Easily confirm the hole position with the jog down feature. Punch automatically returns to the start”g position after the punch”g cycle is complete.
• Work stand; foot switch; 7/16″ punch & (2) dies; tool kit and carry”g case are standard.
• New quick change punches for easy changeout with no tools required.
• THIS TOOL DOES NOT USE THE SAME PUNCHES AND DIES AS THE 75002.5

ROUND PUNCH				MATERIAL		DIE
Size			Part No.	Thickness	Style	Size	Part No.
Nom”al	Actual	Metric
15/64″	.234	6mm	734	14 to 11 GA	F;A;H	Die 15/64 SA	708
				14 to 3 GA	F;A;H	Die 15/64 SB	709
1/4″	.256	6mm	735	14 to 11 SA	F;A;H	Die 1/4 SA	710
				14 to 3 GA	F;A;H	Die 1/4 SB	711
5/16″	.315	8mm	736	14 to 11 GA	F;A;H	Die 5/16 SA	712
				14 to 3 GA	F;A;H	Die 5/16 SB	713
11/32″	.335	8.5mm	737	14 to 11 SA	F;A;H	Die 11/32 SA	714
				14 to 3 GA	F;A;H	Die 11/32 SB	715
3/8″	.394	10mm	738	14 to 11 GA	F;A;H	Die 3/8 SA	716
				14 to 3 GA	F;A;H	Die 3/8 SB	717
				19/64″	C	Die 3/8 C	75450
7/16″	.335	8.5mm	737	14 to 11 SA	F;A;H	Die 7/16 SA	718
				14 to 3 GA	F;A;H	Die 7/16 SB	719
				19/64″	C	Die7/16 C	75451
15/32″	.472	12mm	75910	14 to 11 GA	F;A;H	Die 15/32″ SA	75912
				14 to 3 GA	F;A;H	Die 15/32″ SB	75913
1/2″	.335	8.5mm	737	14 to 11 SA	F;A;H	Die 1/2 SA	720
				14 to 3 GA	F;A;H	Die 1/2 SB	721
				19/64″	C	Die 1/2 C	75452
9/16″	.551	14mm	741	14 to 11 GA	F;A;H	Die 9/16 SA	722
				14 to 3 GA	F;A;H	Die 9/16 SB	723
				19/64″	C	Die 9/16 C	75453
19/32″	.591	15mm	742	14 to 11 SA	F;A;H	Die 19/32 SA	724
				14 to 3 GA	F;A;H	Die 19/32 SB	725
5/8″	.625	15.9mm	743	14 to 11 GA	F;A;H	Die 5/8 SA	726
				14 to 3 GA	F;A;H	Die 5/8 SB	727
11/16″	.688	17.5mm	744	14 to 11 SA	F;A;H	Die 11/16 SA	728
				14 to 3 GA	F;A;H	Die 11/16 SB	729
23/32″	.709	18mm	75911	14 to 11 GA	F;A;H	Die 23/32 SA	75915
				14 to 3 GA	F;A;H	Die 23/32 SB	75916
3/4″	.750	19mm	745	14 to 11 SA	F;A;H	Die 3/4 SA	730
				14 to 3 GA	F;A;H	Die 3/4 SB	731

“
