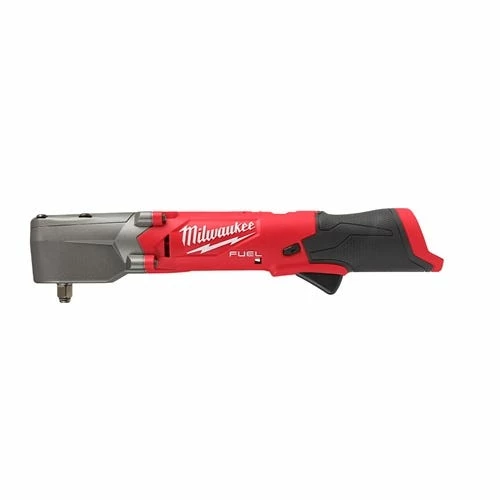

Milwaukee Tools Milwaukee M12 FUEL 3/8″ Right Angle Impact Wrench (Bare Tool) 2564-20

Milwaukee

M12 FUEL 3/8 Right Angle Impact Wrench (Bare Tool) 2564-20

The M12 FUEL 3/8″ Right Angle Impact Wrench w/ Friction Ring is the industry’s most powerful right angle impact wrench. With up to 220 ft-lbs. of nut-busting torque; removing stubborn bolts and fasteners are no longer an issue. Along with power; the tool offers users maximum access and ultimate control for hard to reach applications. With a head profile of only 2.2″; this tool easily fits into tight spaces making users more productive while decreases their need for socket extensions often used with pistol-grip impact tools. 4-Mode Drive Control will allow unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for precision control. In Mode 4; this tool is equiped with Auto Shut-off Mode in forward and Bolt Removal Mode in reverse. Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15ft-lbs. of torque. Bolt removal mode delivers more control as RPMs drastically slow down once the bolt is loosened. The REDLINK PLUS™ Intelligence ensures users achieve maximum performance and protects the tool against overloads; over-heating; and over-discharge. The M12 REDLITHIUM Battery Packs are compatible with all M12 tools; delivering more work per charge and more work over the life of the pack.

FEATURES:

• POWERSTATE Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque; making it the most powerful cordless right angle impact wrench on the market
• A 2.2″ head profile design allows for more access in tight spaces
• Up to 220 ft-lbs. of Nut-busting Torque .
• More Access in Tight Spaces.
• 4-Mode Drive Control.
• Battery Gauge: Shows state of battery charge.
• Foward/Reverse/Tool-lock Actuation: Easily accessible when using the tool.
• A 2.8″ slim head profile design allows for more access in tight spaces.
• Mode 1 RPMs: 0-1;550; Mode 2 RPMs: 0-2;300; Mode 3 RPMs: 0-3;000; Mode 4 RPMs: 0-3;000.
• Mode 1 IPMs: 0-1;350; Mode 2 IPMs: 0-2;700; – Mode 3 IPMs: 0-3;600; Mode 4 IPMs: 0-3;600.
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
• REDLINK PLUS Intelligence ensures maximum performance and protects from overloads; heating and over-discharge.
• LED light to illuminate the work area.
• Premium rubber overmold withstands corrosive materials and provides increased comfort when in use.

SPECIFICATIONS:

4 Modes	Mode 1: 0-1;200 RPM / Mode 2: 0-1;800 RPM / Mode 3: 0-2;700 RPM / Mode 4: Auto Shut-Off Mode
Motor Type	Powerstate
Voltage	12V
Torque	220 ft-lbs
RPMs	3;000
Warranty	5 Years
Useable Reach	8.63″
Length	13.28″
Width	2.32″
Height	2.8″
Weight	2.83 lbs

INCLUDES:

• (1) M12 FUEL 3/8″ Right Angle Impact Wrench (Bare Tool) 2564-20

“
