Milwaukee Tools Milwaukee M18 200′ Pipeline Inspection System Kit 2974-22

Milwaukee

M18 200’ Pipeline Inspection System Kit 2974-22

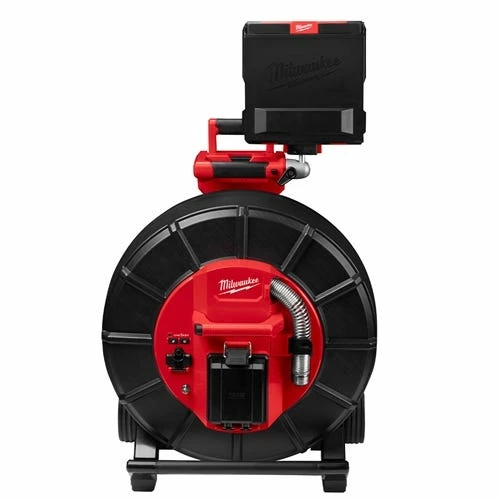

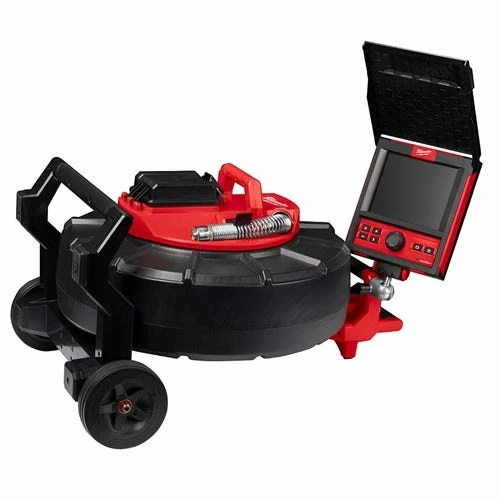

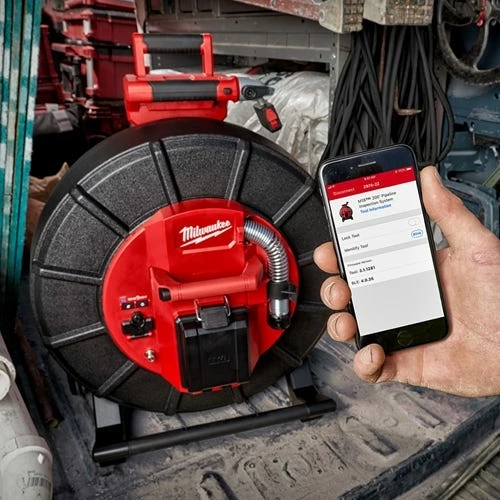

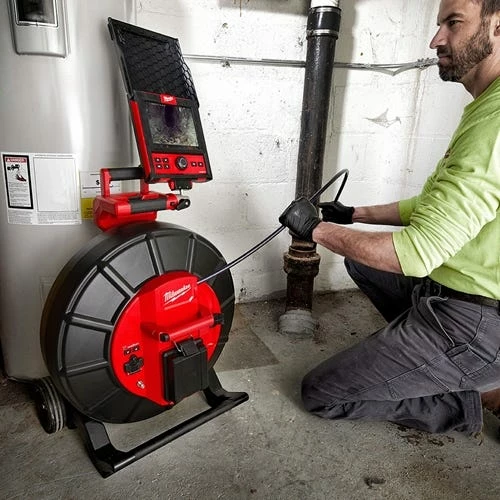

The Milwaukee M18 200’ Pipeline Inspection System delivers the clearest image; easiest inspections for 3-10” sewer lines up to 200’. Featuring the industry’s shortest 34 mm 1080p HD self-leveling camera head; and the ability to digitally zoom up to 4X and pan; technicians can now see more in drain lines than ever before. With the system’s telescoping handle and wide wheelbase; transportation on and off the job has never been easier. This inspection system is also equipped with ONE-KEY Technology; providing the ability to track the tool’s location; manage it in inventory; and lock the tool out to help protect your investment.

FEATURES:

• 34 mm HD Camera delivers 4X Digital Zoom.
• Compatible with Modular Pipeline System.
• Capture; Create; and Share to Mobile Devices.
• Extendable handle and wide wheelbase provide maximum stability.
• 1080p camera resolution providing the industry’s clearest image inside of drain lines.
• 12mm Push Cable Diameter provides stiffness to push maximum distance.
• Powered by the M18 500GB Control Hub.
• Extendable handle and wide wheelbase provide maximum stability.
• On board monitor mount for viewing and transportation.

SPECIFICATIONS:

Line Capacity	3-10″
Sonde Frequency	512Hz; 640Hz; 33kHz
Line Trace Frequency	33kHz; 83kHz
Push cable length	200
Push Cable Diameter	12mm
Camera Resolution	1080p
Internal Stoarge	500GB SSD
Data Transfer Method	USB; wireless to mobile device
Camera head Ingress Protection	IP67
Video Display	M18 Wireless Monitor or Milwaukee Pipeline Inspection App
Length	19.6″
Width	21.9″
Height	28.5″

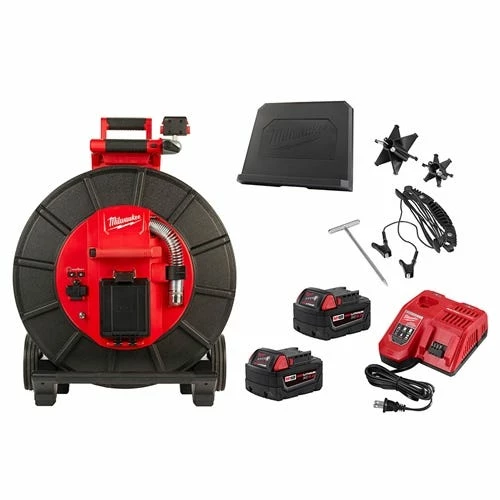

INCLUDES:

• (1) 200′ Pipeline Inspection Reel (2974-20)
• (1) M18 500 GB Control Hub (2970-20)
• (1) Tablet mount (48-53-2970)
• (1) Small camera head skid for 34mm camera
• (1) Medium camera head skid for 34mm camera head
• (1) M18 & M12 Rapid Charger (48-59-1808)
• (2) M18 XC 5.0 Batteries (48-11-1850)

“
